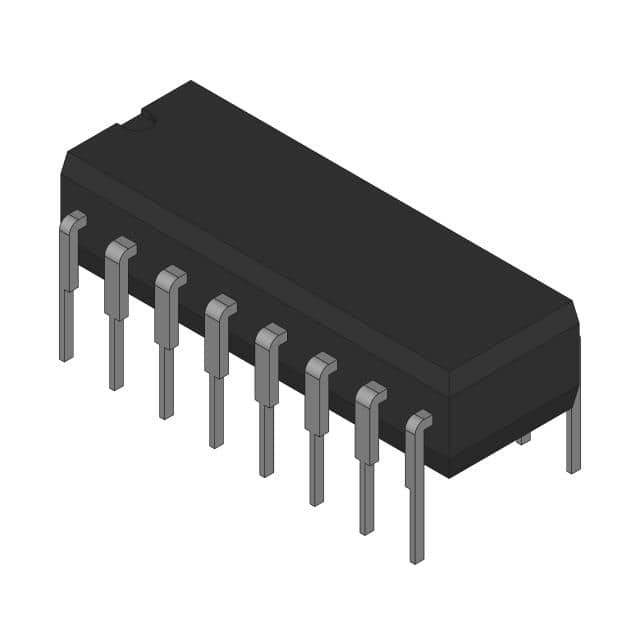

ISL83202IPZ Image Image may be representation.
See specs for product details.
ISL83202IPZIntersil HALF BRIDGE BASED MOSFET DRIVER,
Part NumberISL83202IPZ
Package16-DIP (0.300", 7.62mm)
ManufacturerIntersil (Renesas Electronics Corporation)
RoHs StatusROHS3 Compliant
Manufacturer Part NumberIntersil-ISL83202IPZ
DescriptionHALF BRIDGE BASED MOSFET DRIVER,
In stock4606
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 4606 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - ISL83202IPZ
  • ISL83202IPZ Tech Specifications
    Intersil - ISL83202IPZ technical specifications, attributes, parameters and parts with similar specifications to Intersil - ISL83202IPZ
    Manufacturer Intersil (Renesas Electronics Corporation)
    Voltage - Supply 8.5V ~ 15V
    Supplier Device Package 16-PDIP
    Series -
    Rise / Fall Time (Typ) 9ns, 9ns
    Package / Case 16-DIP (0.300", 7.62mm)
    Package Tube
    Operating Temperature -55°C ~ 150°C (TJ)
    Number of Drivers 4
    Mounting Type Through Hole
    Logic Voltage - VIL, VIH 1V, 2.5V
    Input Type Inverting, Non-Inverting
    High Side Voltage - Max (Bootstrap) 70 V
    Gate Type N-Channel MOSFET
    Driven Configuration Half-Bridge
    Current - Peak Output (Source, Sink) 1A, 1A
    Channel Type Independent
    Base Product Number ISL83202
  • TheISL83202IPZis a Integrated Circuits (ICs) component, full developed and mass-produced by Intersil manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is HALF BRIDGE BASED MOSFET DRIVER, and it falls under the category of PMIC - Gate Drivers, with Manufacturer of Intersil (Renesas Electronics Corporation) and Voltage - Supply of 8.5V ~ 15V and Supplier Device Package of 16-PDIP. Efficient purchasing through Intersil-Micro.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for ISL83202IPZ or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute ISL83202IPZ ISL83204AIPZ ISL83204AIBZ ISL83220ECV
Part Number ISL83202IPZ ISL83204AIPZ ISL83204AIBZ ISL83220ECV
Manufacturer Intersil Intersil Intersil Intersil
Current - Peak Output (Source, Sink) 1A, 1A 2.6A, 2.4A 2.6A, 2.4A -
High Side Voltage - Max (Bootstrap) 70 V 75 V 75 V -
Voltage - Supply 8.5V ~ 15V 9.5V ~ 15V 9.5V ~ 15V 3V ~ 5.5V
Mounting Type Through Hole Through Hole Surface Mount Surface Mount
Channel Type Independent Synchronous Synchronous -
Input Type Inverting, Non-Inverting Inverting, Non-Inverting Inverting, Non-Inverting -
Driven Configuration Half-Bridge Half-Bridge Half-Bridge -
Package Tube Bulk Tube Tube
Rise / Fall Time (Typ) 9ns, 9ns 10ns, 10ns 10ns, 10ns -
Series - - - -
Base Product Number ISL83202 ISL83204 ISL83204 -
Logic Voltage - VIL, VIH 1V, 2.5V 1V, 2.5V 1V, 2.5V -
Supplier Device Package 16-PDIP 20-PDIP 20-SOIC 16-TSSOP
Operating Temperature -55°C ~ 150°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) 0°C ~ 70°C
Package / Case 16-DIP (0.300", 7.62mm) 20-DIP (0.300", 7.62mm) 20-SOIC (0.295", 7.50mm Width) 16-TSSOP (0.173", 4.40mm Width)
Gate Type N-Channel MOSFET N-Channel MOSFET N-Channel MOSFET -
Number of Drivers 4 4 4 -
